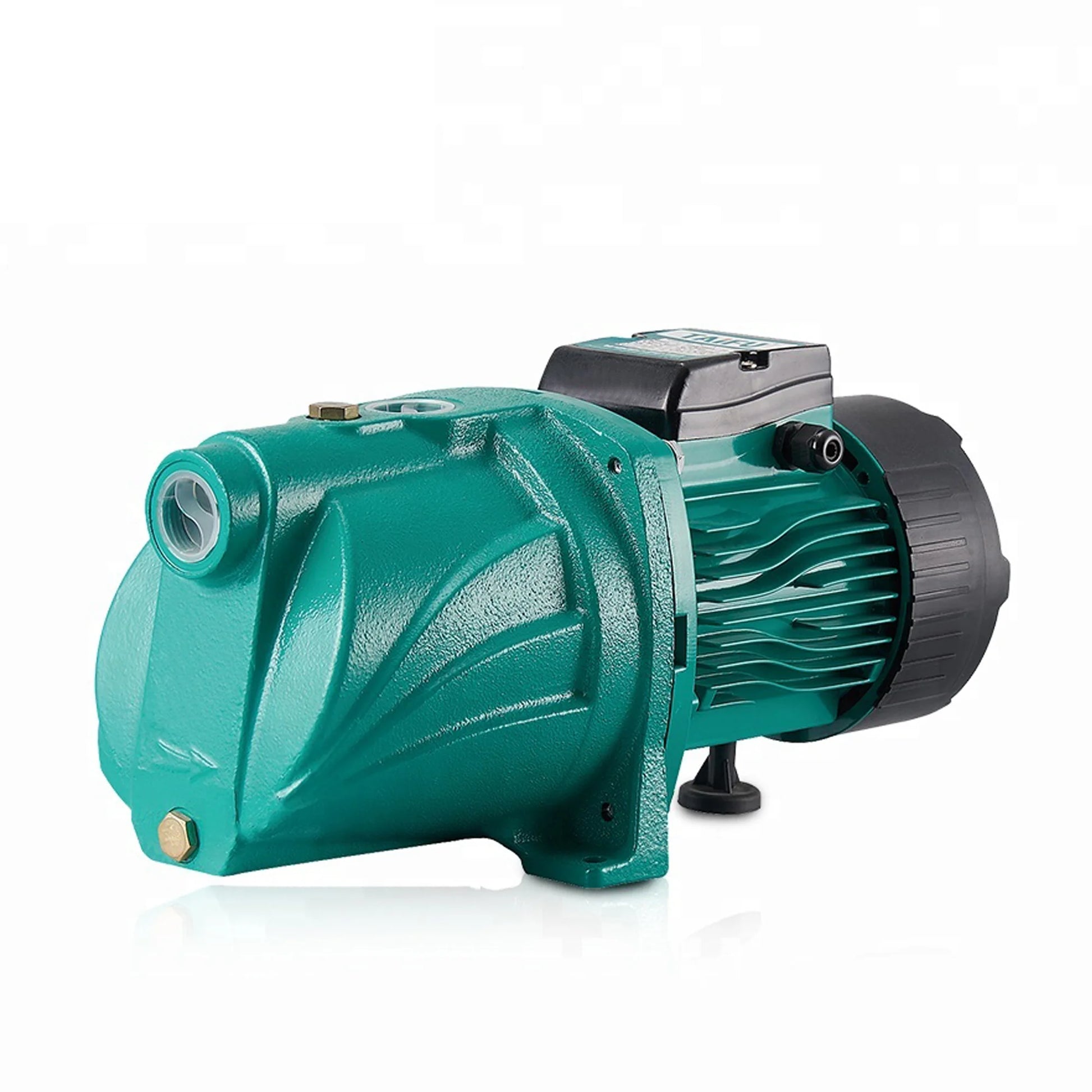

Taifu JET100 Jet Priming Pump 1.0HP - 100% COPPER WINDING
Taifu JET100 Jet Priming Pump 1.0HP - 100% COPPER WINDING
Regular price
Rs.22,000.00 PKR
Regular price
Rs.24,000.00 PKR
Sale price
Rs.22,000.00 PKR
Quantity
Couldn't load pickup availability
| Feature | Specification |
|---|---|
| Model | Taifu JET 100 |
| Motor Power | 1.0 HP (≈ 750 W) |
| Maximum Flow Rate | ~3,600 L/h (≈ 60 L/min) |
| Maximum Head | ~43–46 m |
| Max Suction Lift | ~8 m |
| Connections (Inlet/Outlet) | 1″ × 1″ threaded port |
| Construction | Full cast iron pump body, brass impeller |
| Mechanical Seal | DE carbon ceramic mechanical seal |
| Motor Windings | Class‑F copper wire; rated up to 155 °C thermal endurance |
| Rotational Parts | Stainless‑steel rotor shaft; reinforced thickened motor housing; increased cooling fins |
| Protection | Anti‑rust coating, wear‑resistant, anti‑aging finishing; withstands 0.8 m drop |
| Design Functionality | Jet self-priming centrifugal pump |
| Fluid Compatibility | Clean water, rainwater, garden, domestic supply water |
| Service Warranty | Often 1 year (depending on seller/region) |
| Weight & Dimensions | Approx. 15 kg, ~44 cm (length) × 26 cm × 26 cm |
| Max Working Pressure | ~4 bar (≈ 40 m head) |
| Voltage | 220–240 V AC (single-phase) |
