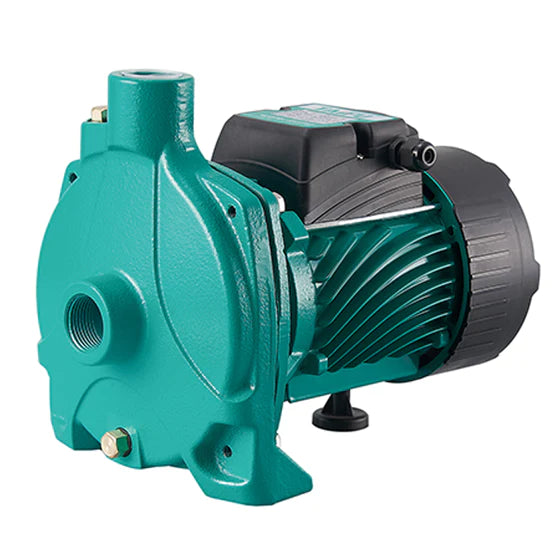

TAIFU TCP158 CENTRIFUGAL PUMP 1.0HP – 100% COPPER WINDING
TAIFU TCP158 CENTRIFUGAL PUMP 1.0HP – 100% COPPER WINDING
Regular price
Rs.24,000.00 PKR
Regular price
Rs.26,000.00 PKR
Sale price
Rs.24,000.00 PKR
Quantity
Couldn't load pickup availability
| Spec Parameter | Specification |
|---|---|
| Model | TAIFU TCP158 / TCP-158 |
| Motor Power | 1 HP (≈ 750 W) |
| Motor Winding | 100% Copper, Class-F (Heat resistance up to 155 ℃) |
| Flow Rate | Up to 100 L/min (≈ 6 m³/h) |
| Maximum Head | ~30 m |
| Maximum Suction Lift | 7–8 m |
| Connection Size | 1″ × 1″ inlet & outlet |
| Materials | Cast iron body, stainless steel impeller & shaft; brass components |
| Mechanical Seal | DE Carbon mechanical seal (extends service life ~170%) |
| Anti-corrosion Treatment | Electrophoresis treatment, reinforced nylon, anti-strike/aging design |
| Protection Class | IP44 |
| Dimensions & Weight | Approx. 310 × 220 × 270 mm, ~14 kg |
